Zebra FX9600 vs FX7500: Which RFID Reader Do You Need?

Introduction

Zebra offers a versatile lineup of fixed RFID readers tailored to different business needs, helping organizations improve visibility, efficiency, and return on investment. Selecting the right model is crucial, as it directly impacts performance, scalability, and long-term value. Among Zebra’s most popular options are the FX7500, FX9600, and FXR90. Each reader is designed with a distinct purpose: from cost-effective retail and office deployments to rugged industrial environments and future-ready enterprise solutions powered by IoT and advanced connectivity.

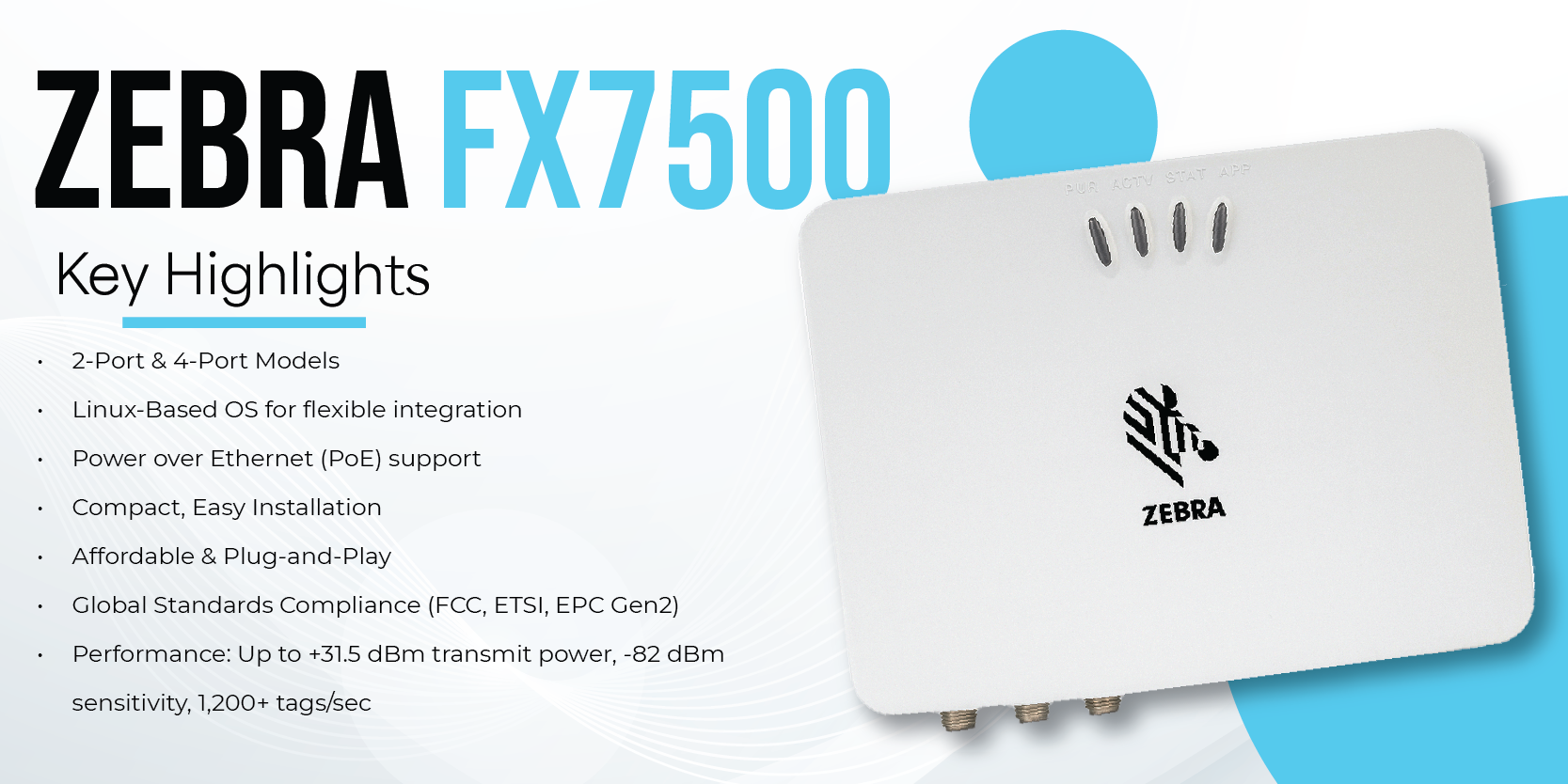

Zebra FX7500: Entry-Level Performance

Overview

The Zebra FX7500 is designed for business-class environments where affordability, ease of deployment, and reliable performance matter most. It introduces a new software-based RFID radio technology that delivers faster, more accurate read rates and consistent performance, even in challenging environments. Combined with a Linux-based architecture, the FX7500 offers flexibility for integration and future upgrades, making it a smart investment for small to medium businesses.

This reader is available in 2-port and 4-port models, giving organizations the flexibility to deploy exactly the number of read points they need without overspending. Its compact footprint and sleek design make it suitable for offices, retail stores, and other non-industrial settings.

Target Use Case

• Small to medium businesses
• Retail stores
• Offices and administrative environments

Key Features

• 2-port and 4-port configurations for deployment flexibility
• Linux-based OS with support for third-party applications
• Power over Ethernet (PoE) for simplified installation without extra outlets
• Compact design with plenum rating for installation in ceilings or walls
• Global standards compliance (FCC, ETSI EN 302 208, EPC Gen2, ISO 18000-6C)
• Connectivity options: Ethernet, USB host/client, GPIO, optional Wi-Fi/Bluetooth via adaptors

Pros

• Affordable entry point into RFID adoption
• Plug-and-play setup with auto-discovery and pre-defined configuration files
• Supports worldwide RFID standards for global deployments
• Sleek, low-profile design suitable for business environments

Performance

• Transmit power: Up to +31.5 dBm (with PoE+ or external DC supply)
• Receive sensitivity: -82 dBm for reliable tag detection
• Read rate: Best-in-class dense reader mode performance, capable of 1,200+ tags/sec in FM0 mode

Applications

• Retail checkout counters for fast item scanning
• Office asset tracking (laptops, IT equipment)
• Small inventory systems in backrooms or storerooms
• Libraries and document management setups

Benefits

• Affordable RFID adoption without compromising performance
• Easy installation using Power over Ethernet (PoE)
• Compact design that fits seamlessly into office or retail spaces
• Global standards support for flexible deployment across regions

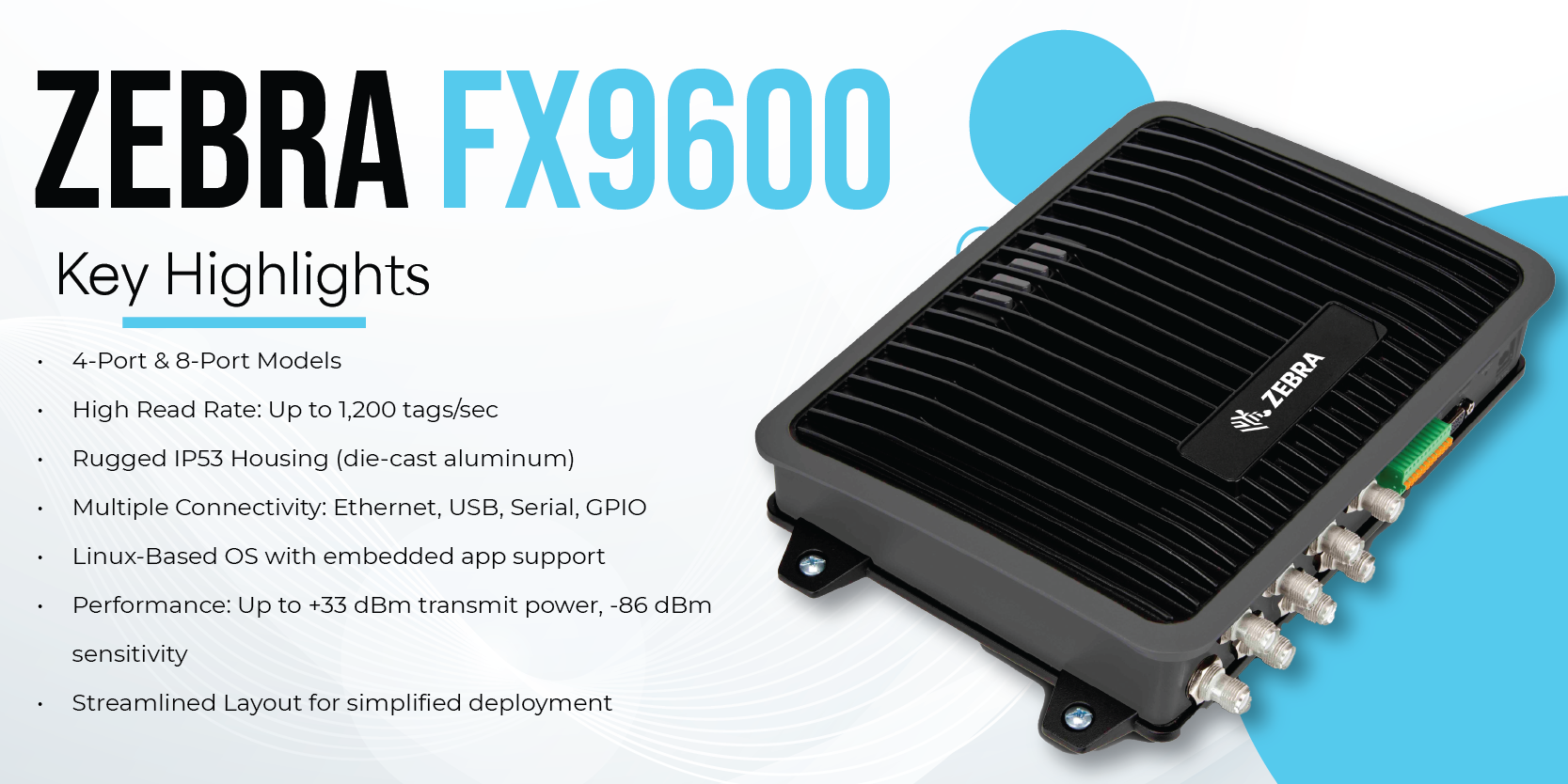

Zebra FX9600: Industrial Strength

Overview

The Zebra FX9600 is built for rugged, high-volume environments like warehouses, manufacturing plants, and logistics hubs. It combines industry-leading read rates, long read ranges, and exceptional RF sensitivity to ensure accurate inventory management even in challenging conditions with metal or liquid interference. With 4-port and 8-port models, the FX9600 provides scalability for large deployments, making it ideal for dock doors, conveyor belts, and outdoor storage areas.

Target Use Case

• Warehouses
• Manufacturing plants
• Logistics hubs
• Outdoor storage areas

Key Features

• 4-port and 8-port configurations for flexible deployment
• High read rate: up to 1,200 tags/sec
• Rugged IP53 housing with die-cast aluminum build for durability
• Multiple connectivity options: Ethernet, USB host/client, Serial (DB9), GPIO
• Linux-based OS with support for embedded applications and middleware integration
• Power over Ethernet (PoE/PoE+) for simplified installation

Pros

• Handles large RFID tag volumes with high throughput
• Rugged design ensures uptime in tough environments
• Supports forklift mounting and large-scale deployments
• Simplifies integration with middleware applications

Performance

• Transmit power: Up to +33 dBm (with PoE+ or 24V DC supply)
• Receive sensitivity: -86 dBm for superior tag detection
• Operating temperature: -20°C to +55°C, suitable for extreme conditions

Applications

• Warehouse dock doors and portals for automated tracking
• Conveyor belt monitoring in manufacturing plants
• Logistics hubs handling thousands of tags per hour
• Outdoor storage areas needing rugged RFID performance

Benefits

• Rugged build ensures reliability in tough environments
• High read rate (up to 1,200 tags/sec) for bulk scanning
• Multiple connectivity options for flexible integration
• Long-term durability reduces maintenance costs and downtime

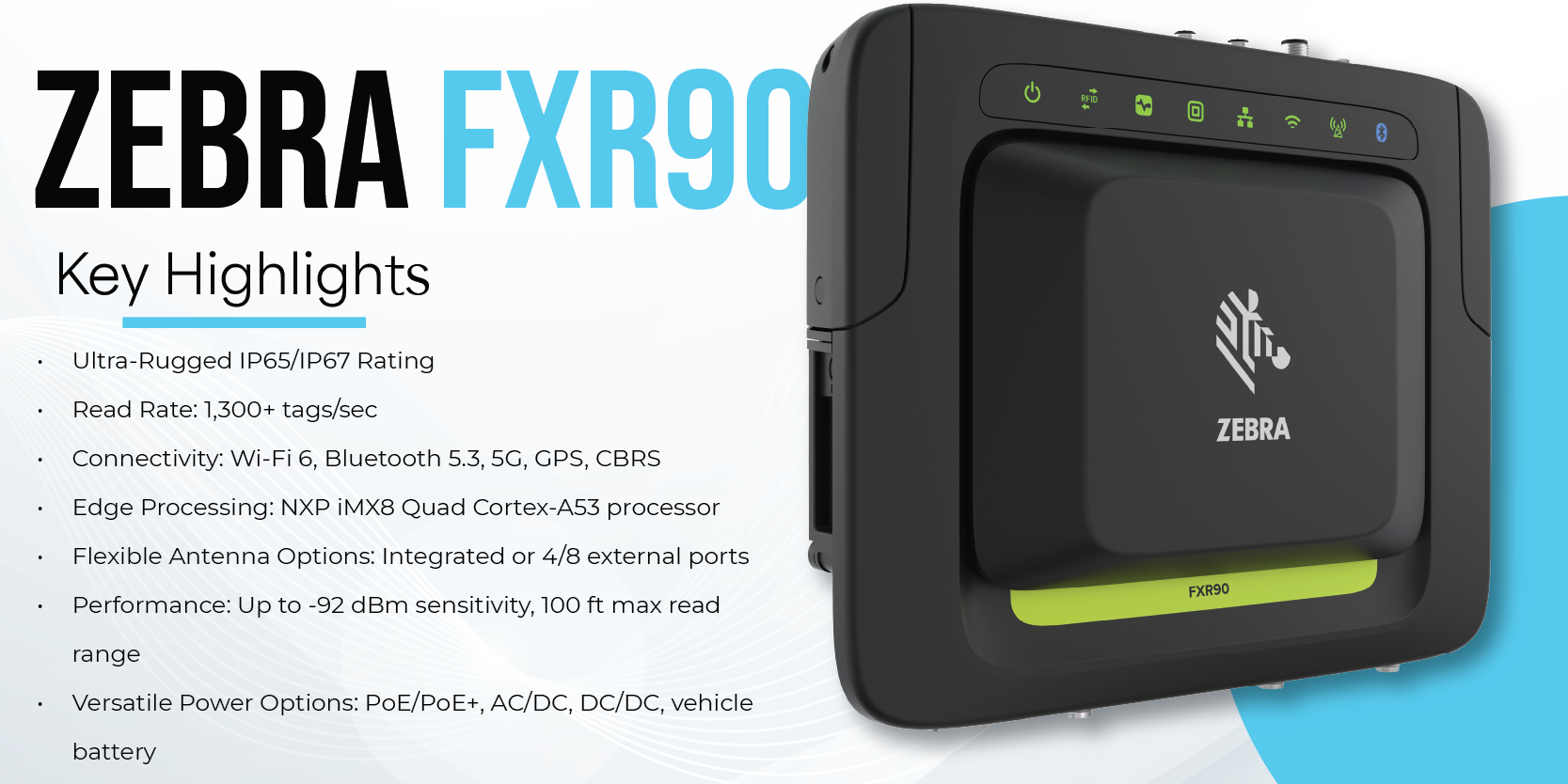

Zebra FXR90: Next-Gen Intelligence

Overview

The Zebra FXR90 is an ultra-rugged fixed RFID reader designed for the most demanding environments. With dual IP65/IP67 sealing, it withstands dust, water, extreme temperatures, and even daily wash-downs. It’s built for industries like transportation, logistics, warehousing, and manufacturing, where reliability and performance are critical.

The FXR90 goes beyond traditional RFID by offering advanced connectivity (Wi-Fi 6, Bluetooth 5.3, 5G, GPS, CBRS) and edge processing powered by the NXP iMX8 processor. This means it can handle real-time analytics directly at the reader, reducing latency and enabling smarter supply chain decisions.

Target Use Case

• Advanced IoT deployments
• AI-driven supply chains
• Large enterprises with complex RFID needs

Key Features

• Ultra-rugged IP65/IP67 rating for extreme indoor/outdoor conditions
• Read rate: 1,300+ tags per second
• Connectivity: Wi-Fi 6, Bluetooth 5.3, 5G, GPS, CBRS
• Edge processing: NXP iMX8 Mini Quad Cortex-A53 processor
• Flexible antenna options: Integrated antenna or external 4/8-port configurations
• Versatile power options: PoE/PoE+, AC/DC, DC/DC, vehicle battery connections

Pros

• Future-proof with unmatched connectivity options
• Supports real-time analytics at the edge
• Rugged enough for outdoor and industrial deployments
• Flexible mounting and power options for diverse environments

Limitations

• Premium pricing compared to FX7500 and FX9600
• May be excessive for smaller or simpler RFID setups

Options

• Integrated antenna model for streamlined deployment
• External antenna models (4-port or 8-port) for expanded coverage

Applications

• Large-scale logistics centers needing rugged RFID tracking
• IoT-driven supply chains with real-time analytics
• Outdoor rugged environments such as construction sites or mining operations
• Smart factories integrating RFID with AI and 5G

Benefits

• Ultra-rugged IP65/IP67 rating ensures reliability in extreme conditions
• Advanced connectivity with Wi-Fi 6, Bluetooth 5.3, 5G, GPS, CBRS
• Edge processing enables real-time decision-making at the reader
• Future-proof investment for enterprises scaling IoT and AI-driven operations

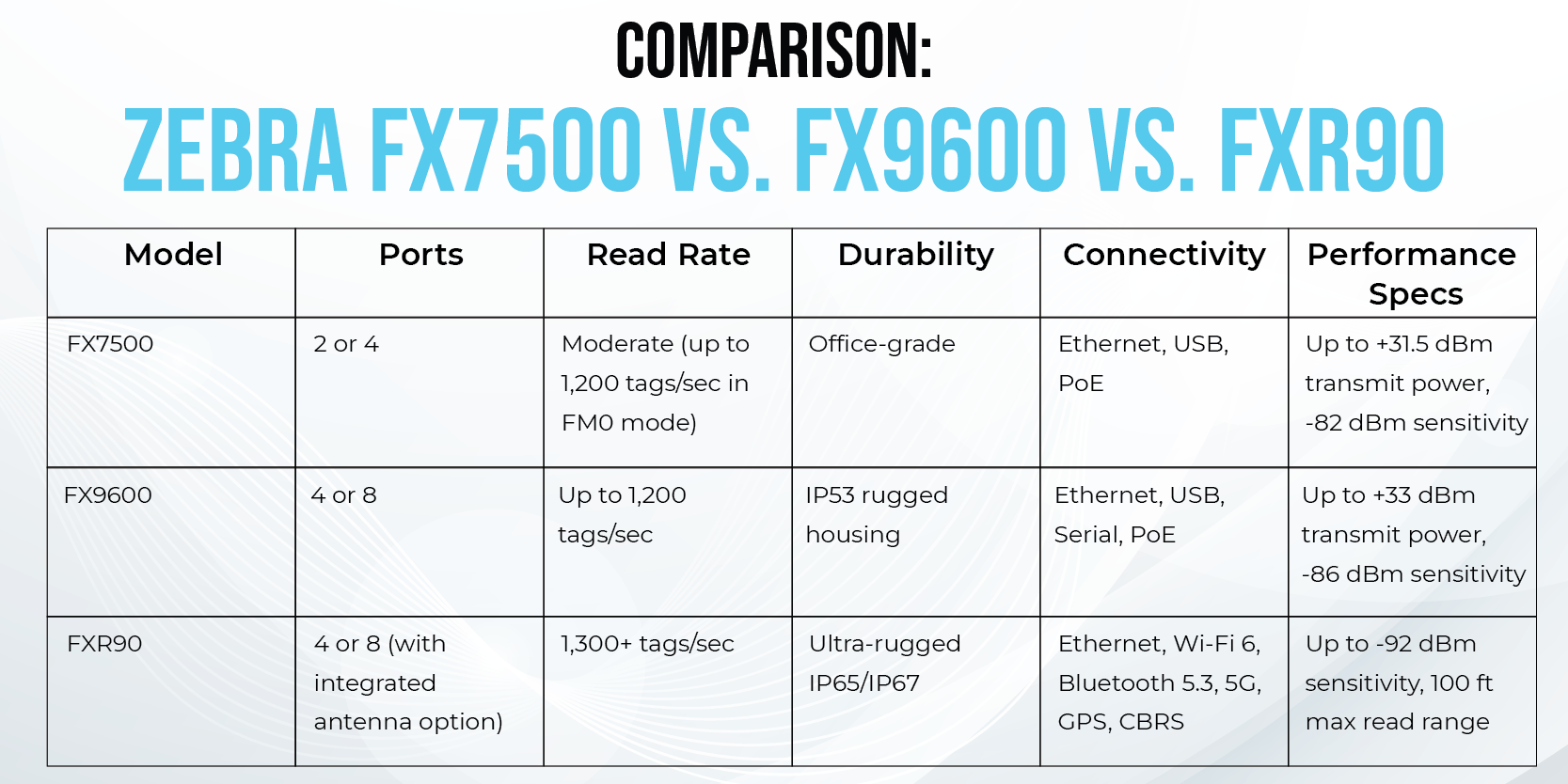

Side-by-Side Comparison

Which Should You Buy?

Choosing the right Zebra RFID reader depends on your environment, scale, and future needs. Each model is designed for a specific type of deployment, so matching the reader to your business use case is key to maximizing ROI.

FX7500

The FX7500 is the best choice for retail and office environments where affordability and simplicity are priorities. Its compact design, easy installation with Power over Ethernet (PoE), and support for global RFID standards make it ideal for small to medium businesses. If you need a reliable, entry-level RFID solution without the complexity of rugged hardware, the FX7500 delivers excellent value.

FX9600

The FX9600 is built for rugged, high-volume industrial use. With IP53-rated housing, up to 8 antenna ports, and a read rate of 1,200 tags per second, it thrives in warehouses, manufacturing plants, and logistics hubs. It’s designed to handle bulk scanning at dock doors, conveyor belts, and outdoor storage areas. While it comes at a higher cost and requires professional setup, its durability and speed make it the go-to option for businesses with demanding RFID needs.

FXR90

The FXR90 is the next-generation RFID reader for enterprises that want advanced intelligence and connectivity. With ultra-rugged IP65/IP67 sealing, a read rate of 1,300+ tags per second, and built-in wireless technologies (Wi-Fi 6, Bluetooth 5.3, 5G, GPS, CBRS), it’s designed for IoT-driven supply chains and smart factories. Its edge processing capabilities allow real-time analytics at the reader, reducing latency and enabling smarter decision-making. While premium-priced, it’s a future-proof investment for organizations scaling RFID with AI and IoT.

Quick Guidance

• FX7500 → Affordable, easy RFID deployment for retail and offices.
• FX9600 → Rugged, high-speed RFID for warehouses and logistics.
• FXR90 → Advanced, future-ready RFID for large enterprises and IoT-driven supply chains.

Conclusion

Each Zebra RFID reader is designed with a specific purpose in mind, making it easier to match the right model to your business needs. The FX7500 is a cost-effective and simple solution for retail and office environments where ease of deployment matters most. The FX9600 stands out as a rugged, high-performance option built for warehouses and logistics operations that demand speed and durability. Finally, the FXR90 is a future-ready reader, offering IoT and 5G capabilities for enterprises seeking advanced connectivity and real-time intelligence.
