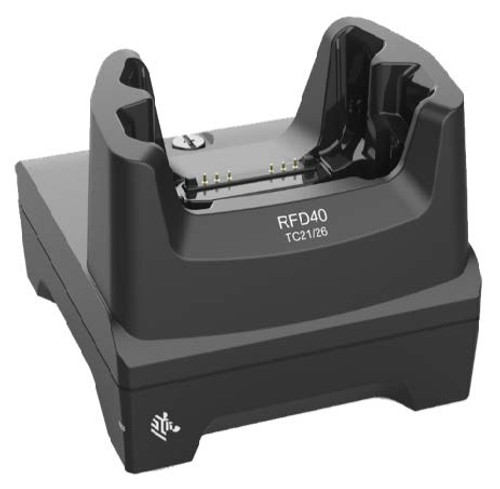

Single Slot Charge- Communication ShareCradle - RFD40 and TC21/TC26

The Zebra CRD1S0T-RFD40-TC2X-COM-1R Single-Slot Communication/Charging Cradle is a compact and efficient solution designed to charge both the Zebra RFD40 RFID Sleds and the Zebra TC21/TC26 mobile computers.  It is compatible with the Zebra RFD40 Standard RFID Sled, Zebra RFD40 Premium Plus RFID Sled,  and Zebra RFD40 Premium Plus RFID Sled.

Built for enterprise environments such as retail, logistics, warehousing, and healthcare, this cradle ensures your devices remain powered and ready for mission-critical operations.

It supports multiple charging configurations:

• RFD40 charging by itself
• TC21/TC26 charging by itself
• Both RFD40 and TC21/TC26 when attached together

Additionally, the cradle provides USB communication to the RFD40 sled (not to TC21/TC26), enabling seamless data transfer and device management.

Important Notes:

• This cradle does not charge spare batteries.
• The enhanced Zebra ShareCradle design allows the charging cup to be easily removed and swapped with different cups using a simple coin-turned screw.
• Part Number (P/N): C1S0T40TC2M1

To operate, the following accessories are required:

• PWR-BGA12V50W0WW - Power Supply
• CBL-DC-388A1-01 - DC Line Cord
• 23844-00-00R - AC Line Cord (US Specific)

With Zebra’s trusted durability and advanced communication capability, the CRD1S0T-RFD40-TC2X-COM-1R is a reliable investment for enterprises seeking streamlined workflows, efficient charging, and dependable RFID integration.

FAQs

Which devices are compatible with this cradle?

• It supports Zebra RFD40 Standard, Premium, and Premium Plus RFID Sleds, along with TC21 and TC26 mobile computers.

Can the cradle charge both devices at the same time?

• Yes, it can charge the RFD40 sled and TC21/TC26 mobile computer simultaneously when attached together.

Does this cradle provide communication capability?

• Yes, it provides USB communication to the RFD40 sled, but not to the TC21/TC26.

Does this cradle charge spare batteries?

• No, it is designed only for charging devices, not spare batteries.

What accessories are required to use this cradle?

• You need the PWR-BGA12V50W0WW power supply, CBL-DC-388A1-01 DC line cord, and 23844-00-00R AC line cord (US specific).
