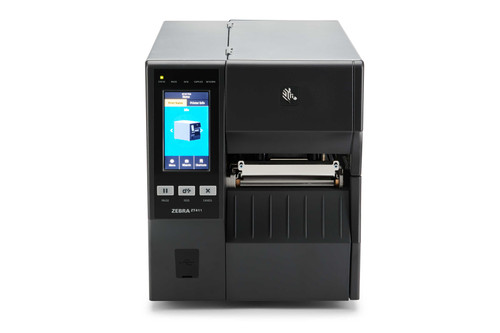

Zebra ZT411R Industrial Enhanced UHF RFID Printer

Zebra ZT411R Industrial UHF RFID Printer

The Zebra ZT411R is a rugged industrial RFID printer built for nonstop performance in demanding environments. Designed with an all‑metal construction, it delivers reliable 4‑inch RFID printing and encoding with support for both standard and on‑metal RFID labels. Available in 203 dpi and 300 dpi configurations, the ZT411R ensures crisp text, barcodes, and RFID tag encoding for enterprise applications.

Equipped with Zebra’s RE40 RFID encoder and Adaptive Encoding Technology, the ZT411R automatically adjusts to different RFID inlays, reducing errors and improving encoding accuracy. A large color touchscreen simplifies setup and operation, while multiple connectivity options — Ethernet, Serial, USB, dual USB Host, Bluetooth® 4.1, and optional Wi‑Fi 6/6E with Bluetooth 5.3 — make integration seamless.

The Enhanced ZT411R and ZT421R are equipped with Zebra’s advanced RE40 RFID encoder for improved RFID performance and reliability. The ZT411R also features a built-in PLC print head for faster small-label encoding, reduced label movement, and support for on-metal RFID tags, making RFID printing more efficient and accurate.

Need help selecting RFID labels or ribbons for your ZT411R? RFID4U can assist with compatible RFID media, printer configurations, and RFID software to ensure your application runs smoothly.

Features & Benefits

• Print Methods: Thermal transfer and direct thermal printing
• Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host
• 4.3-inch color touch display with intuitive menu for quick operation and settings management

There are two printers in the ZT400 Series: the ZT411 and the ZT421. Both printers share the same internal mechanical components, electrical components and control board. The primary difference between the two printers is the print width and maximum print resolution.

Whether you are using a Zebra or a competitive printer, you can use the same label formats and applications with the ZT400. Support for both EPL and ZPL makes it easy to migrate from another Zebra desktop printer.

The side-loading supplies path makes loading simpler, faster, and more intuitive.

Constructed using a bi-fold door, these printers are designed to easily fit in space-constrained environments.

With the Network Connect option, ZT400 printers can be connected directly to Industrial Ethernet network without any additional equipment.

203 DPI vs. 300 DPI Guidance

When selecting your Zebra ZT411R, you can choose between 203 dpi and 300 dpi print resolutions. The right option depends on the type of labels and level of detail your application requires.

Applications of the Zebra ZT411R

The Zebra ZT411R is designed for versatile RFID printing across multiple industries. Its ability to support both standard and on‑metal RFID labels makes it suitable for a wide range of workflows.

Manufacturing

• Work‑in‑process tracking – Monitor production stages with RFID labels.
• Component identification – Tag parts for accurate assembly and quality control.
• Finished goods labeling – Ensure products are properly tagged before shipping.
• Production tracking – Gain visibility into throughput and bottlenecks.
• Tool/equipment identification – Track tools and machinery across facilities.

Warehouse & Logistics

• Inventory labeling – Maintain accurate warehouse stock counts.
• Shipping & receiving – Speed up inbound and outbound logistics.
• Pallet identification – Tag pallets for supply chain visibility.
• Case labeling – Ensure cartons are properly tracked.
• Compliance labeling – Meet industry and regulatory requirements.

Asset Tracking

• IT asset labels – Track servers, laptops, and networking equipment.
• Equipment identification – Manage tools and heavy machinery.
• Fixed asset labeling – Maintain accurate records of long‑term assets.
• Tool tracking – Prevent loss and improve accountability.
• On‑metal asset tags – Specialized labels for metal surfaces.

Retail

• Item‑level RFID labeling – Improve shelf accuracy and replenishment.
• Inventory management – Real‑time visibility into stock levels.
• Supply‑chain labeling – Track goods from source to store.
• Source tagging – Apply RFID labels at the point of manufacture.

Healthcare

• Equipment identification – Track medical devices and instruments.
• Asset tracking – Ensure visibility of critical hospital assets.
• Inventory labeling – Manage supplies, pharmaceuticals, and consumables.

Ordering Options

• ZT41142-T0100E0Z - TT Printer Enhanced ZT411; 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder w/Print Line Coupler: US & Canada, EZPL
• ZT41143-T0100E0Z - TT Printer Enhanced ZT411; 4", 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, RFID UHF Encoder w/Print Line Coupler: US & Canada, EZPL
• ZT41142-T5100E0Z - TT Printer TAA Enhanced ZT411; 4", 203 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder w/Print Line Coupler: US & Canada, EZPL
• ZT41143-T5100E0Z - TT Printer Enhanced ZT411; 4", 300 dpi, US Cord, Serial, USB, 10/100 Ethernet, Bluetooth 4.1/MFi, USB Host, On-metal, RFID UHF Encoder (v2): US & Canada, EZPL

What's included in the box?

• Printer
• Power cord
• Documentation (safety guide and warranty card)

Standard RFID vs. On‑Metal RFID

When choosing the Zebra ZT411R, customers can select between Standard RFID and On‑Metal RFID configurations. Understanding the difference ensures you pick the right option for your application.

Standard RFID Configuration

Designed for conventional RFID smart labels used in everyday applications such as:

• Inventory management
• Cardboard/carton labeling
• Plastic item tagging
• Pallet tracking
• Manufacturing workflows
• Retail labeling
• General asset identification

On‑Metal RFID Configuration

Built to handle specialized, thicker RFID labels designed for use on metal surfaces and other challenging environments. This option ensures reliable encoding and performance where standard RFID labels may fail.

Choosing the Right Configuration

Select the configuration based on the RFID label type and the application surface you intend to use.

Not sure whether you need the standard or on‑metal ZT411R? Contact RFID4U with your label and application requirements, and our RFID team will help identify the best configuration for your needs.

RFID Labels Compatible with the Zebra ZT411R

The Zebra ZT411R supports a variety of RFID labels, but compatibility depends on label dimensions, RFID inlay, inlay position, tag pitch, face material, adhesive, application surface, label thickness, environmental conditions, and required read performance. Below are tested RFID labels available from RFID4U:

TronRFID 1.85" x 0.91" Paper RFID Blank Labels, 5000 Labels/Roll, 3" Core (TR‑7208B)

• Size: 1.85" x 0.91"
• Material: Paper (Blank RFID)
• Roll: 5000 labels per roll, 3" core
• Applications: Asset identification, IT equipment tagging

TronRFID 3.25" x 1.5" RFID Blank Hang Tag, 2000 Labels/Roll, 3" Core (TR‑7215)

• Size: 3.25" x 1.5"
• Material: Paper (Blank RFID Hang Tag)
• Roll: 2000 labels per roll, 3" core
• Applications: Tool tracking, warehouse inventory

TronRFID 4" x 6" DT Paper RFID Label – Perforated, 1000 LPR, 3" Core (TR‑7207)

• Size: 4" x 6"
• Material: Paper (Direct Thermal)
• Roll: 1000 labels per roll, 3" core
• Applications: Shipping labels, logistics workflows

TronRFID 4" x 6" TT Paper RFID Label – Perforated, 1000 LPR, 3" Core (TR‑7206)

• Size: 4" x 6"
• Material: Paper (Thermal Transfer)
• Roll: 1000 labels per roll, 3" core
• Applications: Compliance labeling, manufacturing applications

TronRFID 4" x 1" TT Paper RFID Label – Perforated, 5000 LPR, 3" Core (TR‑7212)

• Size: 4" x 1"
• Material: Paper (Thermal Transfer)
• Roll: 5000 labels per roll, 3" core
• Applications: Retail item tagging, case labeling

Zebra ZT411R Compatible Ribbons

The performance of your Zebra ZT411R depends on using the correct ribbon matched to your RFID label face material and application requirements. Selecting the right ribbon ensures optimal print quality, durability, and reliable RFID encoding.

TronRFID Printer Ribbon 4.33 in. x 1476 ft., 1 in. Core, 6 Rolls/Case

• Size: 4.33" x 1476 ft.
• Core: 1"
• Roll: 6 rolls per case
• Applications: High‑volume printing, warehouse inventory, shipping labels

ZD621R vs. ZT411R Comparison

Many customers evaluating RFID printers may wonder whether they need a desktop RFID printer or an industrial RFID printer. The Zebra ZD621R and Zebra ZT411R serve different needs, and this comparison helps clarify which model is right for your application.

Zebra ZT411R + TagMatiks RFID Software

The Zebra ZT411R is not just a hardware solution — it becomes more powerful when paired with TagMatiks RFID Software. Together, they enable businesses to streamline RFID workflows from label printing to enterprise asset management.

How ZT411R Works with TagMatiks

• RFID Label Printing – Print high‑quality RFID labels directly from the ZT411R using TagMatiks Print Manager for seamless integration.
• RFID Encoding – Encode EPC Gen2 / RAIN RFID tags during printing, ensuring each label is electronically scannable.
• Asset Identification – Tag and track IT equipment, tools, and fixed assets with encoded RFID labels.
• Inventory Management – Gain real‑time visibility into stock levels across warehouses, retail, and supply chains.
• Receiving Workflows – Automate inbound logistics by tagging and verifying shipments at the point of receipt.
• Manufacturing Applications – Use RFID labels for work‑in‑process tracking, component identification, and production monitoring.
• Item Identification – Apply RFID labels to individual products for retail, healthcare, or compliance labeling.

By combining the ZT411R industrial RFID printer with TagMatiks Print Manager software, businesses can implement a complete RFID solution — from printing and encoding to asset tracking and inventory management.

Learn more about TagMatiks Print Manager and how it integrates with the Zebra ZT411R to simplify RFID label printing and encoding.

Why Buy Your Zebra ZT411R from RFID4U?

When investing in an industrial RFID printer like the Zebra ZT411R, choosing the right partner is just as important as choosing the right hardware. RFID4U goes beyond simply selling printers — we deliver complete RFID solutions tailored to your business needs.

Reasons to Buy from RFID4U

• Zebra RFID hardware expertise – Decades of experience with Zebra RFID printers and encoders.
• RFID label & inlay selection – Guidance on choosing the right RFID labels and inlays for your application.
• RFID ribbon selection – Ensure optimal print quality and durability with the correct ribbon.
• Printer configuration assistance – Expert setup and calibration for your ZT411R.
• RFID encoding guidance – Support for EPC Gen2 / RAIN RFID encoding and application workflows.
• On‑metal RFID expertise – Specialized knowledge for printing and encoding on‑metal RFID labels.
• TagMatiks RFID software – Seamless integration with TagMatiks Print Manager for RFID label printing, encoding, and enterprise workflows.
• RFID implementation services – End‑to‑end deployment support, from pilot to production.
• Technical support options – Ongoing assistance, troubleshooting, and extended service plans.
• Complete RFID solution design – Hardware, media, software, and services working together for maximum ROI.

Why Choose the Zebra ZT411R?

The Zebra ZT411R is more than just a printer — it’s a trusted industrial RFID solution designed for businesses that need reliable performance, flexibility, and durability.

Key Reasons to Choose ZT411R

• Industrial RFID Printing – Built tough with a metal frame for nonstop operations.
• Integrated UHF RAIN RFID – Encode EPC Gen2 / RAIN RFID tags with precision.
• 4‑inch Print Width – Ideal for labels, tags, and on‑metal RFID media.
• High‑Speed Printing – Handles large volumes efficiently in industrial environments.
• 203 or 300 dpi Options – Choose the resolution that fits your application.
• Adaptive Encoding Technology – Automatically adjusts to different RFID inlays for error‑free encoding.
• Wide RFID Label Support – Compatible with standard and on‑metal RFID labels.
• 4.3‑inch Color Touchscreen – Easy setup and monitoring with an intuitive interface.
• Multiple Connectivity Options – Ethernet, USB, Serial, Bluetooth, and optional Wi‑Fi 6/6E.

Frequently Asked Questions (FAQs)

What is the Zebra ZT411R?

The Zebra ZT411R is an industrial UHF RAIN RFID printer that combines high‑volume label printing with advanced RFID encoding. It is designed for manufacturing, logistics, healthcare, and retail environments where durability and performance are critical.

What media handling options are available for the ZT400 series?

The ZT400 series media handling options include:

• Rewind: internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (Factory installed only)
• Peel: A front mount, passive peel option
• Peel: Liner take-up option – additional full roll liner take-up spindle accommodates standard printer base
• Cutter: A front mount guillotine cutter and catch tray
• 1 in. I.D. Core Media Supply Hanger (ZT411 only)
• Ink-side in ribbon supply (ZT411 only)

What is the maximum RFID roll size (OD - Outer Diameter) for the ZT411 Printer?

8.0 in O.D. on a 3 in I.D. core.

What are the connectivity options?

In addition to standard USB, serial, Ethernet, and Bluetooth, the ZT400 Series has optional:

• Parallel (Bi-directional interface)
• Ethernet
• Applicator interface

Can I print in direct thermal mode with a ZT411?

Yes, the ZT411 can be configured to print in direct thermal mode.

What is the standard warranty for the Zebra ZT411 printer?

ZT400 Series printers are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment.

What is Zebra’s RFID On-metal Tagging Solution?

Zebra offers a version of the ZT411 that enables users to print and encode Silverline labels that are designed to work on a variety of surfaces including metallic cylinders and other challenging surfaces. This on-metal tagging solution can be ordered from the factory or upgraded in the field. The on-metal tagging solution is only available for 203 dpi and 300 dpi models.

Is the RFID On-metal Tagging Solution the same as the standard UHF RFID model?

No. The on-metal tagging solution is different than the standard UHF RFID model. Silverline tags are thicker than standard RFID tags, so a modified print mechanism is needed to allow the thicker tags to pass under the printhead without binding.

Does the printer support USB Host?

Yes, we offer two standard USB Host ports, which open a number of new capabilities utilizing the printer, not an additional client, to locally manage files, input data and configure the printer. USB mirror is ideal for local, fast replication of firmware, files and configurations for ease of setup and maintenance.

What is an RFID printer?

An RFID printer prints text, graphics, or barcodes on RFID labels while simultaneously encoding data into the embedded chip, making each label both visually readable and electronically scannable.

How easy is it to setup the Zebra ZT411?

The ZT411 features a 4.3‑inch color touchscreen and intuitive menus, making setup simple. It supports plug‑and‑play connectivity with USB, Ethernet, and Bluetooth, and optional Wi‑Fi for wireless integration.

What maintenance is required for the ZT411?

Routine maintenance includes cleaning the printhead, platen roller, and sensors. Zebra offers upgrade kits and replacement parts such as printheads and rollers to extend printer life.

What industries commonly use the ZT411?

The ZT411 is widely used in manufacturing, logistics, healthcare, and retail for asset tracking, inventory management, and compliance labeling.

What support options are available?

Zebra provides one‑year warranty coverage, optional extended service plans, and global technical support for troubleshooting and repairs.

What is a PLC Encoder?

A PLC (Print Line Coupler) Encoder is Zebra's advanced RFID encoding technology that places the RFID antenna directly in the print head. This allows RFID tags to be encoded exactly where they are printed, resulting in faster performance, improved accuracy, less label movement, and better support for small RFID labels and some on-metal tags.

What is the difference between the ZT411 and ZT411R?

The ZT411 is a standard industrial printer, while the ZT411R adds integrated RFID encoding capabilities. The “R” model supports both standard and on‑metal RFID labels, making it suitable for advanced asset tracking and compliance applications.

Can the Zebra ZT411R print and encode RFID labels?

Yes. The ZT411R can simultaneously print text, barcodes, and graphics while encoding data into RFID labels, ensuring each label is both visually readable and electronically scannable.

What RFID tags does the ZT411R support?

It supports EPC Class 1 Gen 2 and Gen 2 V2 RFID tags, including standard smart labels and specialized on‑metal tags when configured with the on‑metal option.

What is the ZT411R on‑metal RFID option?

This configuration is designed to handle thicker RFID labels that work on metal surfaces. It uses a modified print mechanism to ensure smooth feeding and accurate encoding of on‑metal RFID tags.

What ribbons work with the ZT411R?

The ZT411R supports Zebra thermal transfer ribbons matched to PolyPro and other media types. Choosing the correct ribbon ensures optimal print quality and durability for your application.

What is the minimum RFID tag pitch?

The ZT411R supports a minimum tag pitch of 0.6 inches (15 mm), enabling efficient encoding of closely spaced RFID inlays.

Can RFID4U help configure the ZT411R?

Yes. RFID4U provides configuration services, including label selection, ribbon matching, printer setup, and RFID software integration to ensure smooth deployment.

Can the ZT411R work with TagMatiks?

Yes. The ZT411R integrates with the TagMatiks Print Manager platform, enabling advanced RFID workflows such as inventory management, asset tracking, and compliance reporting.
