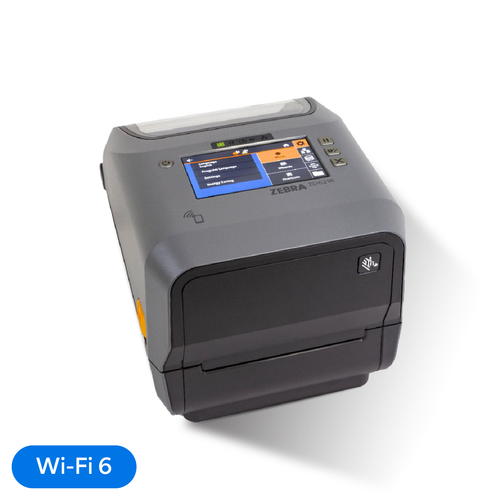

Zebra ZD621R RFID Thermal Transfer 4" Print Width TAA & FIPS enabled Premium Desktop Printer

Zebra ZD621R Thermal Transfer Desktop Printer

The Zebra ZD621R thermal transfer desktop printer is built to deliver high-quality printing with advanced features and long-lasting performance. It’s designed to be easy to set up, operate, and manage thanks to Zebra’s Print DNA software suite. With RFID capabilities, strong security, and flexible options, this printer can handle a wide range of applications and keep up with your business needs day after day. The ZD621R offers excellent print quality, portability, and support for emerging technologies, making it a future-ready choice. Part of the ZD600 Series, it’s engineered with innovative architecture that allows it to perform more tasks at once and adapt as technology evolves. Plus, with the latest Wi-Fi™ 6/6E and Bluetooth® 5.3 connectivity

Benefits:

• Simple to use with an intuitive user interface, media guide, and media handling designs.
• Flexible to support more use cases with thermal transfer and RFID models.
• Easy to setup, use, manage and secure with the Print DNA software suite.
• Ready for now and what’s next with field-installable connectivity and media handling options.

Features:

• Print methods: Thermal Transfer
• ZPL and EPL programming languages
• 5 status icon, 3 button user interface
• Ethernet, Serial, USB 2.0, USB Host
• Real-Time Clock (RTC)
• Media dancer for excellent print quality
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR® certified.

Ordering Options:

• ZD6A142-301FR1GA - Thermal Transfer Printer (74/300M) ZD621R, Color Touch LCD; 203 dpi, USB, USB Host, Ethernet, Serial, BTLE5, USA/Canada, RFID - UHF, US Cord,
  Swiss Font, EZPL
• ZD6A143-301FR1GA - Thermal Transfer Printer (74/300M) ZD621R, Color Touch LCD; 300 dpi, USB, USB Host, Ethernet, Serial, BTLE5, USA/Canada, RFID - UHF, US Cord,
  Swiss Font, EZPL

What is included in the box?

• Printer
• 300 m ribbon core adapters for non-Zebra ribbon (2) *
• AC power supply, power cord(s)
• USB cable
• Quick Start Guide
• Regulatory Guide

Frequently Asked Questions(FAQs)

Q1: What protocols does the ZD621R RFID Thermal Transfer Printer support?

A1: The ZD621R supports EPC Gen 2 and ISO 18000-6c air protocols.

Q2: What is the frequency range for the ZD621R printer?

A2: The frequency range for the ZD621R printer is 860 to 960 MHz.

Q3: What types of data connections are available on the ZD621R printer?

A3: The ZD621R printer features several data connections, including:

• RS-232 auto-sensing Serial interface (DB-9)
• USB V2.0 (bi-directional)
• Centronics Parallel
• Ethernet - 10/100 internal
• Wireless 802.11 a/b/g/n and Bluetooth 3.0 (optional)

Q4: What is the power source requirement for the ZD621R printer?

A4: The printer has an auto-detectable power source that is PFC compliant and operates on 100-240V AC.

Q5: What is the print resolution of the ZD621R printer?

A5: The ZD621R printer has a standard print resolution of 203 dpi (8 dots per mm), with an optional resolution of 300 dpi (12 dots per mm).

Q6: What is the maximum print width of the ZD621R printer?

A6: The maximum print width of the ZD621R printer is 4.09 inches (104 mm).

Q7: How much memory does the ZD621R printer have?

A7: The ZD621R printer comes with 128 MB of standard SDRAM memory (with 4 MB available to the user) and 256 MB of standard Flash memory (with 56 MB available to the user).

Q8: What are the dimensions of the ZD621R printer?

A8: The dimensions of the ZD621R printer are:

• Width: 7.6 inches (193 mm)
• Height: 7.5 inches (191 mm)
• Depth: 10.0 inches (254 mm)

Q9: What is the weight of the ZD621R printer?

A9: The weight of the ZD621R printer is 5.5 lbs (2.5 kg).

Q10: What is the operating temperature range for the ZD621R printer?

A10: The operating temperature range for the ZD621R printer is from 40°F (4.4°C) to 105°F (41°C).

Q11: What is a desktop RFID printer?

A11: A desktop RFID printer is a compact device that prints labels or wristbands while encoding RFID chips, making it ideal for small to medium applications in retail, healthcare, food, and hospitality.

Q12: Does the ZD621R support secure printing?

A12: Yes. The printer includes advanced security protocols for network connections, ensuring safe data transfer when encoding RFID tags.
