CS710S Accessories guide

CS710S Accessories guide

The CSL CS710S is a Long-Range UHF RAIN RFID handheld sled reader. Re-engineered to use the new reader chip Impinj E710, this Bluetooth (BLE) connected reader has a read range of 20 meters with a Linear Polarized Antenna (tag and environment dependent), a Read Rate of 1,300 tags per second, enabled by Bluetooth 5.0 for faster data connections to devices.

CS710S is available with Vertically linear polarized - Horizontally linear polarized - Circular polarized and 2D barcode scanner module.

CS710S-V/H/C-2D-N

(V for vertically linear polarized, H for horizontally linear polarized, C for circular polarized, 2D means with 2D Barcode option, N denotes the frequency region)

There are quite a few accessories available for the CSL CS710S that will allow you to expand the use of your RFID device.

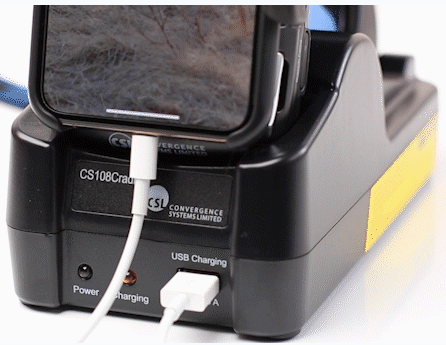

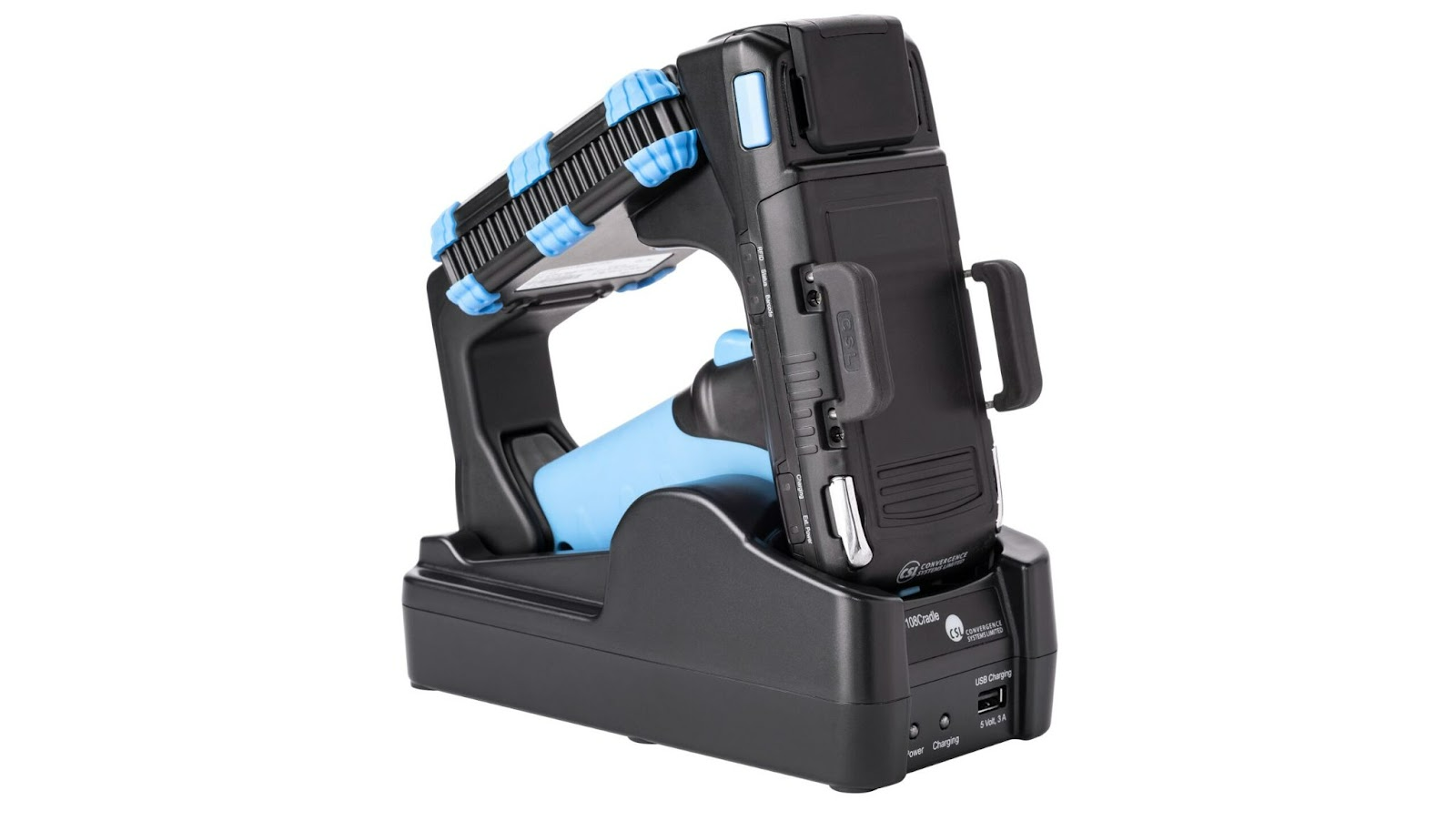

CS108D - Charging Cradle

CSL CS710 Charging Cradle CSL CS710 Charging Cradle

AC power cord Required

  • CSL0576 (USA Type B)
  • CSL0577 (UK)
  • CSL0578 (EU Type E)
  • CSL0579 (EU Type F)
  • CSL0580 (Australia Type 1)
  • CSL0581 (China Type 1)

Mounting Options

CSL designed a modular system to fit almost every size of mobile device on the market. Each mount style is spring loaded to adjust to the exact size of device.

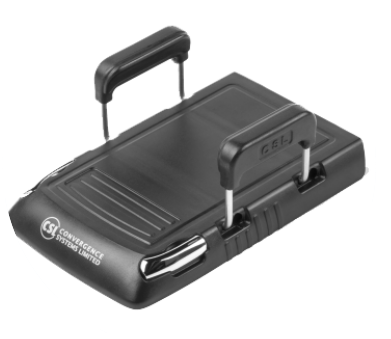

CS108BATCOVERHIGHCLAMP - Tall Mount (Thick Devices)

For mobile phones or tablets with thickness ranges from 15 mm (0.59 inches) to 28 mm (1.10 inches). Also a width range from 65 mm (2.56 inches) to 115 mm (4.53 inches).

CSL CS710 Tall Mount

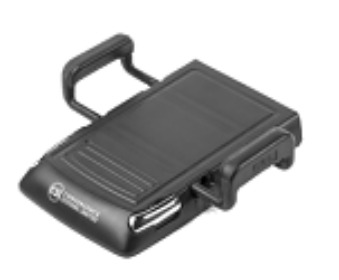

CS108BATCOVERWIDECLAMP - Wide Mount (Small Tablets)

For mobile phone or tablet with width range from 105mm (4.13inches) to 150 mm (5.90 inches)

CSL CS710 Wide Mount

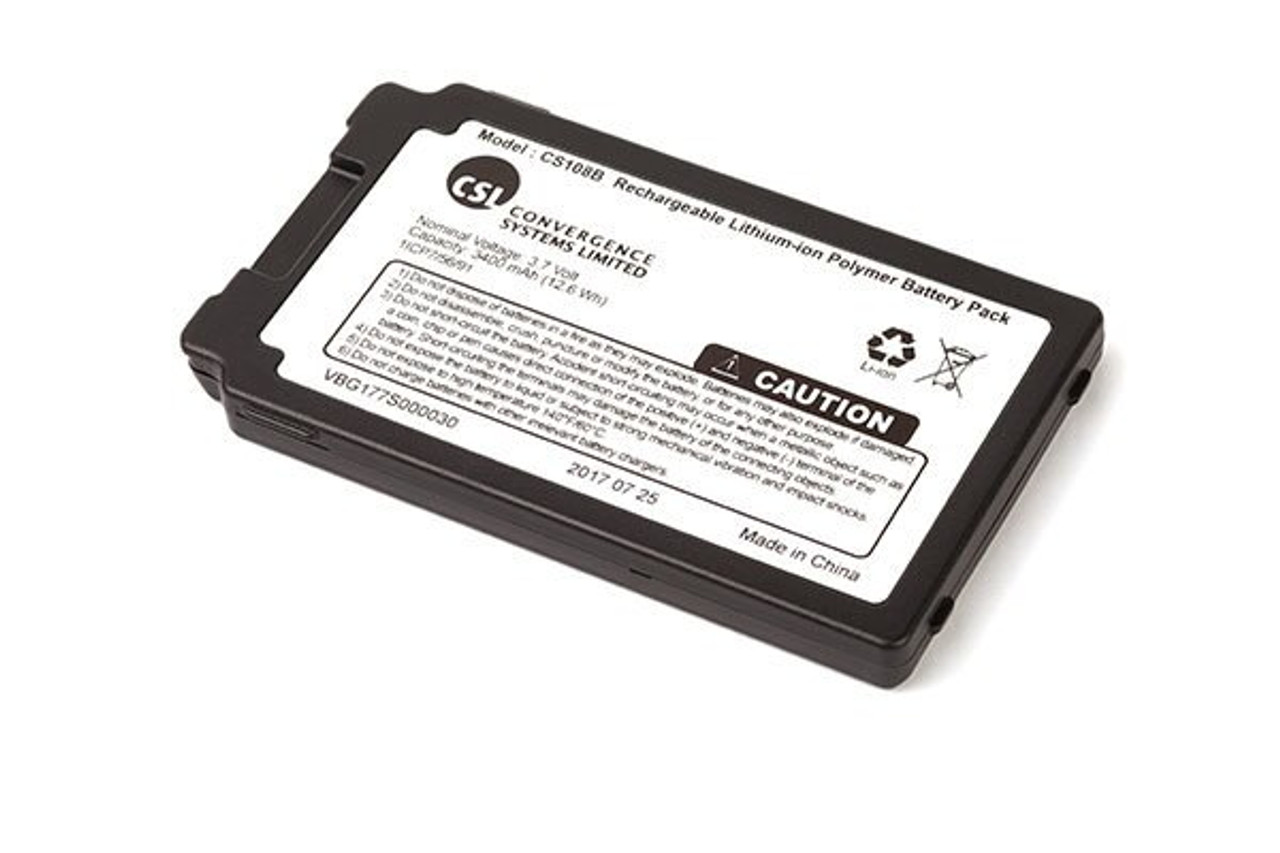

Spare Battery

CS108B - 3400 mAh replacement Battery

CSL CS710 Replacement Battery

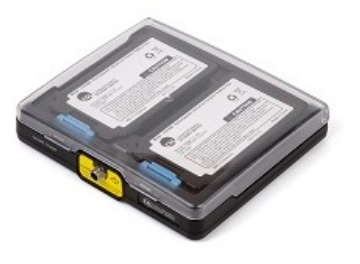

Dual External Charger

CS108C - Charger to Charge two spare batteries of CS710S

CSL CS710 Charger for Battery

FAQs

How can a CS710S battery be charged?

The CS710S battery can be charged in the following ways:

  • With the CS108D Charging Cradle that can also charge the battery of a mobile device over USB
  • With a USB C cable and the battery mounted inside the CS710S
  • With the CS108C Dual External Charger for spare batteries
May 16th 2023 Viwek Jha
