Impinj R720 Fixed RAIN RFID reader

Impinj R720 is newest in Impinj R700 series readers. With powerful edge processing, the Impinj R720 allows enterprises to collect and manage data at the source, giving them real-time edge intelligence that helps optimize speed and automation — especially in supply chain and logistics settings. The Impinj R720 reader is ideal for RAIN deployments that require processor-intensive, on-reader applications and high throughput of tagged items. It enables item-level, autonomous reading of connected items at dock doors, conveyors, and other transition points — for example, in shipping and warehousing environments, where items are in motion, densely packed, or blocked by other items.

Features & benefits:

• Ability to read RAIN RFID tags and view tag reports in a web UI while connected to customer applications.
• Impinj IoT Device Interface duration triggers that allow inventory scheduling.
• Advanced general-purpose output (GPO) control, enabling alarms for events like network connection reader operational status, and tag inventory changes.
• An Impinj tag population estimation algorithm that improves read rate by up to 5% when a tag population changes rapidly.

Accessories Options:

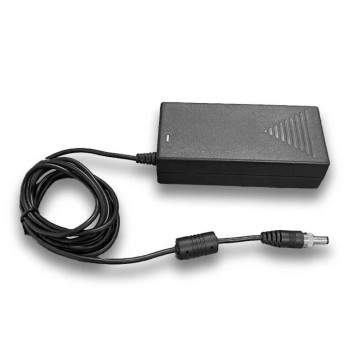

• IPJ-A2010-000 - PoE Injector
• IPJ-A2051-USA - PoE Injector AC Power Cord
• IPJ-A6010-000 - Antenna Hub
• Reader Antenna
• Antenna Cable
• IPJ-A5100-000 - R700 Water Resistant Case

What's included?

• Impinj R720 RAIN RFID Reader
• Mounting Brackets
• One Year Factory Warranty

FAQs:

What is the difference between the R700 and R720 models?

While both models belong to the Impinj R700 series, the R720 offers a Quad-Core 1.4 GHz ARM53 processor compared to the R700's Dual-Core 1 GHz ARM processor, providing enhanced processing capabilities.

What are the connectivity options available with the Impinj R720?

The Impinj R720 supports 10/100/1000 BASE-T Ethernet for network connectivity and features 3 USB Type-A ports and 1 micro-USB port for device connectivity.
