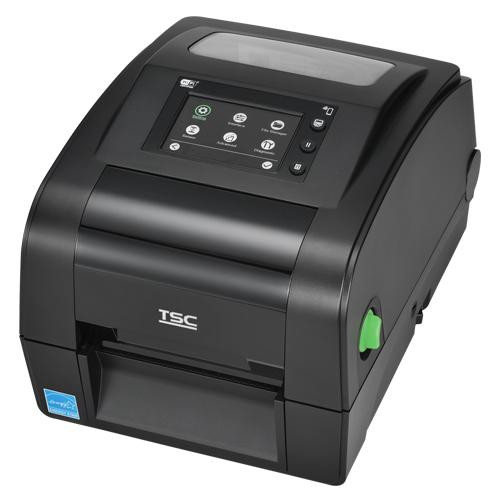

TSC TH240R & TH340R 4” Performance Desktop UHF RFID Printer

Bring high-precision smart tracking straight to your desktop with the TSC Auto ID THx40R Series (TH240R & TH340R) 4-Inch Performance Desktop UHF RFID Printers. These desktop powerhouses are highly versatile and flexible, easily handling a wide range of difficult labels—including thick, tiny, and extra-long formats.

Built with a highly compact, environmentally sustainable design, the THx40R series features a built-in, movable internal antenna positioned below the media for immediate, out-of-the-box RFID encoding and printing. Whether you select the high-speed 203 DPI TH240R or the razor-sharp 300 DPI TH340R for ultra-small labels, this future-proof series scales seamlessly alongside your business operations.

Features & Benefits

• Advanced UHF RFID Architecture: Fully compatible with RAIN RFID (UHF Passive) systems and certified to meet global GS1 EPC Gen2 and ISO 18000-63 tracking standards.
• Movable Internal Antenna: Comes standard with an internal, below-media adjustable antenna layout for instant setup.
• Scalable Upgrade Path: Adapt to changing workflows with field-installable upgrades, including a full-width antenna tear-off upgrade kit that broadens your compatibility with diverse standard and selected on-metal tags.
• Plug-and-Play Emulation: Out-of-the-box auto-switch print language emulation detects major printer languages instantly, allowing you to deploy the printer into existing environments without altering your label templates.
• High-Precision Quality Control: Utilizes an innovative label-stabilizing media damper alongside vertical DPI, heater line, and TPH pressure adjustments to maintain crystal-clear print quality on the smallest tags.
• Automated Data Protection: Eliminates downstream tracking errors by applying a full or partial label overstrike to void failed tags , while a built-in RFID counter logs active good versus bad labels.
• Toolless, Simple Maintenance: Reduces operational downtime with toolless thermal printhead (TPH) and platen roller replacements, backed by a self-diagnostic TPH Care health monitor and low-ribbon warning sensors.
• Enterprise Network Security: Rest easy with robust network protection configurations, including support for HTTPS, SNMPv3, 802.1X protocols, and a TCP/IP Port 9100 filter.
• Eco-Friendly & Sustainable Design: Minimizes environmental impact with 100% recyclable FSC-compliant carton packaging, a printer casing made from 30% recycled plastics, and components that are over 90% recyclable at end-of-life.

Choose Your Resolution & Speed

• TH240R: Optimized for high-velocity desktop labeling workflows. It delivers a standard 203 DPI resolution at print speeds up to 8 ips.
• TH340R: Designed for high-density, miniature labels like asset tags and component markers. It provides crisp 300 DPI resolution at print speeds up to 6 ips.

Ordering Options

• TH240R-A001-0001 - TH240R, THERMAL TRANSFER 4” LABEL PRINTER, 203 DPI, UHF RFID, LCD, DRAM 128MB/FLASH 128MB, USB + RS-232 + ETHERNET + USB HOST + RTC + BUZZER, US
• TH340R-A001-0001 - TH340R, THERMAL TRANSFER 4” LABEL PRINTER, 300 DPI, UHF RFID, LCD, DRAM 128MB/FLASH 128MB, USB + RS-232 + ETHERNET + USB HOST + RTC + BUZZER, US
• TH240R-A001-0101 - TH240R, THERMAL TRANSFER 4” LABEL PRINTER, 203 DPI, UHF RFID, LCD, DRAM 128MB/FLASH 128MB, USB + RS-232 + ETHERNET + USB HOST + RTC + BUZZER, 802.11 a/b/g/n/ac Wi-Fi+BT4.2, US
• TH340R-A001-0101 - TH340R, THERMAL TRANSFER 4” LABEL PRINTER,300 DPI, UHF RFID, LCD, DRAM 128MB/FLASH 128MB, USB + RS-232 + ETHERNET + USB HOST + RTC + BUZZER, 802.11 a/b/g/n/ac Wi-Fi+BT4.2, US

Ideal Industries & Applications

• Warehouse & Fulfillment: Shipping and logistics labeling, product item tags, and inventory replenishment.
• Transportation & Logistics: Cross-docking tracking, freight labeling, and asset tracking.
• Retail: High-precision price labeling, garment tagging, and smart item inventory management.
• Healthcare (Specialized Casing Available): Patient wristbands, specimen labels, and pharmacy tracking. Features an antimicrobial, easy-to-disinfect white aesthetic casing, an optional mess-free ribbon-cartridge design, and an IEC 60601-1 Medical-Grade Compliant Power Supply.
• Food & Beverage / Entertainment: Ingredient labels, event wristbands, and ticketing.

Remote Management & Software Compatibility

Eliminate field downtime with centralized management software. The THx40R series supports:

• TSC Console & SOTI Connect: Real-time remote printer monitoring, mass configurations, and fleet management from any networked PC.
• Internal Embedded Webpage: Access a virtual control panel instantly for swift local diagnostics.
• TSC Standalone Creator & TSCPRTGo: Easily design and print custom barcode layouts without a dedicated computer host.

Future-Proof Accessory Upgrades

Expand your printer’s core capabilities as your operations change with these optional field-upgrade kits:

• UHF RFID Tear Upgrade Kit (with full-width antenna)
• UHF RFID Cutter Upgrade Kit
• 10 mm Narrow Media Adaptor
• Peeler Module / Care Label Cutter Kit
• Linerless Tear-off and Linerless Cutter Kits
• 802.11a/b/g/n/ac Wi-Fi with Bluetooth combo module
• Standalone Bluetooth or MFi Bluetooth connectivity modules
• Portable Battery Station
