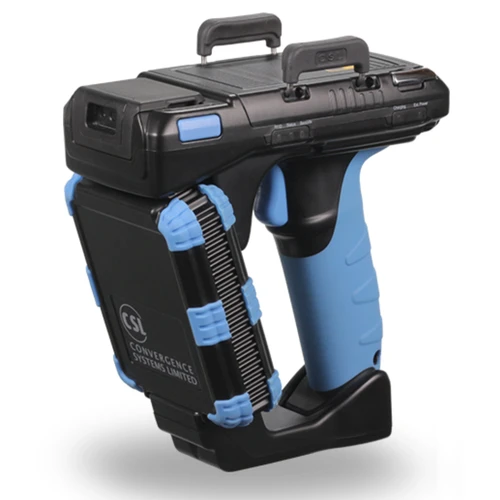

CSL CS108 Sled Handheld for RFID/2D Barcode

CS108 is the best in class read range UHF RFID handheld sled reader in the market. It works with Android and iOS Phones and Tablets. It enables fast inventory of items on pallets, warehouse shelves, retail stores, and other tagged items in business processes where fixed reader class performance is required in a portable device.The CS108 is used globally in many mission critical government, industrial, and commercial applications.

Feature and Benefits:

• Barcode and RFID - Optional 2D barcode scanner module is available. Read RFID tags and barcodes with one device.
• Certified Rugged Design - Rugged design that is drop tested to 1.2 meters and rated IP54.
• Use Any Device Size and OS - Mounting options for tablets or thick enterprise devices.

Ordering Options for Frequency Regulations: -

CS108-V/H/C-2D-N

(V for vertically linear polarized, H for horizontally linear polarized, C for circular polarized, 2D means with 2D Barcode option)

• N=1: 865-868 MHz (Europe) & 865-867 MHz (India)
• N=2: 902-928 MHz, USA, Canada & Mexico only (hopping frequencies locked)
• N=2 AS: for 920-926 MHz, Australia only (hopping frequencies locked)
• N=2 NZ: for 921.5-928 MHz, New Zealand only (hopping frequencies locked)
• N=2 OFCA: for 920-925 MHz, Hong Kong only (hopping frequencies locked)
• N=2 RW: for 902-928 MHz, Rest of the World that are subset of this band: e.g. Philippine, Brazil, Peru, Uruguay, Singapore, Thailand, etc.
• N=4: 922-928 MHz, Taiwan
• N=7: 920-925 MHz, China, Malaysia, etc.
• N=8: 916.7-920.9 MHz, Japan
• N=9: 915-921 MHz, Europe Upper Band

Additional Device Mount Options (Standard Mount included with reader):

• CS108BATCOVERHIGHCLAMP - For mobile phone or tablet with thickness range from 15 mm (0.59 inches) to 28 mm            (1.10 inches). ​Also a width range from 65 mm (2.56inches) to 115 mm (4.53 inches).​
• CS108BATCOVERWIDECLAMP - ​For mobile phone or tablet ​with width range from 105mm (4.13inches) to 150 mm (5.90 inches)
• Included with CS108 - For mobile phone or tablet with width range from 65 mm (2.56 inches) to 115 mm (4.53 inches). Also a thickness range from 7 mm (0.28 inches) to 15 mm (0.59 inches).

Additional Battery Options:

• CS108C - External Battery Charger for CS108 RFID Reader
• CS108B - Spare Battery for CS108 RFID Reader
• CS108D - Charging Cradle for Charge the CS108 and the host mobile device with a USB port on the cradle.

What’s Included:

• CS108 RFID Reader Unit
• 2 Year(s) Factory Warranty

FAQs

What is the maximum read range of the CSL CS108 RFID Reader?

The CSL CS108 RFID Reader has a maximum read range of up to 20 meters with Linear Polarized Antenna and 15 meters with Circular Polarized Antenna, depending on the tag and environment.

What is the warranty period for the CSL CS108 RFID Reader?

The CSL CS108 RFID Reader comes with a 2 Year Factory Warranty from the date of purchase.

What Connectivity does the CSL CS108 RFID Reader support?

The CSL CS108 RFID Reader supports Bluetooth 5.0 (BLE), USB-C Connectivity

What is the difference between CS108 and CSL CS710S Reader?

CSL CS108 Reader has Impinj Indy R2000 RFID engine while CS710S has Impinj E710 RFID engine which makes the CS710S the highest performing handheld sled reader. CSL CS108 Reader has Bluetooth 4.1 (BLE) Connectivity while CS710S is equipped with Bluetooth 5.0 (BLE) for faster data connections with the devices.

What is TagMatiks Wedge?

TagMatiks Wedge is a simple to use RFID software application for mobile devices. TagMatiks Wedge is designed to collect RFID data using an RFID handheld or sled and then feed that data directly to business systems and applications using a wide variety of formats and options.

Is there a user manual available for TagMatiks Wedge?

Yes, the user manual and support documentation are available on the TagMatiksWedge.com.

What is the CSL CS108 Bluetooth UHF RFID 2D Sled Reader?

The CSL CS108 is a handheld UHF RFID sled reader designed for efficient reading of RFID tags and 2D barcodes. It connects to mobile devices via Bluetooth, making it suitable for various inventory and asset management applications.

What are the key features of the CSL CS108?

Key features include:

• Long-range tag reading capabilities, making it one of the longest-range UHF RFID handheld sled readers available.
• Compatibility with all Android and iOS devices, allowing for versatile use across different platforms.
• Lightweight and durable design, suitable for various operational environments.

What types of tags can the CSL CS108 read?

The CSL CS108 is capable of reading EPC Class 1 Gen 2 UHF RFID tags and 2D barcodes, providing flexibility for different data collection needs.

How does the CSL CS108 connect to other devices?

The reader connects wirelessly to host devices using Bluetooth technology, enabling easy integration with mobile applications for data management.

What applications is the CSL CS108 best suited for?

The CSL CS108 is ideal for applications in inventory management, asset tracking, and supply chain logistics, particularly in environments where fast and accurate data collection is essential.

What is the read range of the CSL CS108?

The CSL CS108 boasts a long read range, although specific distances are upto 20 meters. Generally, UHF RFID readers like the CS108 can read tags from several meters away, depending on the tag type and environmental conditions.

Is the CSL CS108 suitable for outdoor use?

Yes, the CSL CS108 is designed to be durable and can be used in various environments, including outdoor settings, although specific ruggedness ratings are not mentioned.

What is the battery life of the CSL CS108?

While specific battery life details are 3,400 mAh,field replaceable Option : extra battery (CS108B); external charger (CS108C), handheld RFID readers like the CSL CS108 are typically designed for extended use throughout a workday, ensuring reliability during operations.

Can the CSL CS108 be used with mobile applications?

Yes, the CSL CS108 is compatible with various mobile applications on Bluetooth-enabled devices, allowing for versatile data collection and management.

What supporting software is available for the CSL CS108?

The CSL CS108 comes with an SDK (Software Development Kit) for iOS, Android, and Windows, enabling developers to create custom applications that leverage the reader's capabilities.
