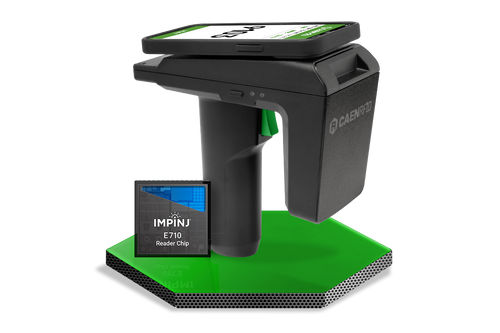

CAEN fIDo (Model R1307IE, R1307IU) RAIN RFID sled reader

Write a Review
SKU:
R1307I
  • CAEN fIDo (Model R1307IE, R1307IU) RAIN RFID sled reader ( R1307I)
  • CAEN fIDo (Model R1307IE, R1307IU) RAIN RFID sled reader ( R1307I)
  • CAEN fIDo (Model R1307IE, R1307IU) RAIN RFID sled reader ( R1307I)
  • CAEN fIDo (Model R1307IE, R1307IU) RAIN RFID sled reader ( R1307I)
  • CAEN fIDo (Model R1307IE, R1307IU) RAIN RFID sled reader ( R1307I)
Call for pricing

Description

fIDo (Model R1307IE, R1307IU) is a RAIN RFID sled reader of the easy2read© product line with integrated antenna for long range applications.

The reader hosts an internal rechargeable battery and can operate both in wired mode, using a USB cable, or in wireless mode through the BLE/Bluetooth® interface.

The device supports both Bluetooth Low Energy (BLE) and Bluetooth classic communication to provide the maximum usage lexibility, including the HID profile for keyboard emulation.

fIDo integrate a SP-Connect SPC+ mounting adapter to easily fix a wide range of smartphones with dedicated phone cases. It also embeds a wireless charging transmitter to charge the smartphone without the need to detach it from the reader.

The radio frequency core of the reader is based on the Impinj E710 IC that permits to achieve fast reading speed and to be used in dense reader and dense tag environments for top-class rated performances.



Features:

  • RAIN RFID (UHF EPC Class1 Gen2, ISO 18000-63) compliant
  • ETSI and FCC versions available
  • Bluetooth/BLE communication
  • Integrated circular polarized antenna
  • Ergonomic form factor
  • RAIN RFID (UHF EPC Class1 Gen2, ISO 18000-63) compliant
  • ETSI and FCC versions available
  • Bluetooth/BLE communication
  • Integrated circular polarized antenna
  • Ergonomic form factor

Applications:

  • RAIN RFID add-on to smartphones, tablets and mobile terminals
  • Shop inventory and cycle counting
  • Asset tracking
  • Warehouse management
  • Mobile workers

Ordering Options:

  • WR1307IXEUAA - fIDo - RAIN RFID sled reader - ETSI
  • WR1307IXUSAA - fIDo - RAIN RFID sled reader - FCC
View AllClose

Additional Information

Frequency Range:
865.600-867.600 MHz (ETSI EN 302 208 v. 3.3.1) (Mod. R1307IE) 902-928 MHz (FCC part 15.247) (Mod. R1307IU)
RF Power:
Configurable from 11 dBm ERP to 28 dBm ERP (Mod. R1307IE) Configurable from 13 dBm EIRP to 30 dBm EIRP (Mod. R1307IU)
RX Sensitivity:
-85 dBm – 10%PER, assuming 20 dB antenna RL @ 30 dBm output
Number of Channels:
4 channels (compliant to ETSI EN 302 208 v. 3.3.1) (Mod. R1307IE) 50 hopping channels (compliant to FCC part 15.247) (Mod. R1307IU)
Standard Compliance:
EPC Class 1 Gen 2 – ISO18000-63
Antenna Gain:
3.0 dBic (typical)
Antenna Polarization:
Integrated Circular Polarized Antenna
Read Range:
Up to 5.0 m (Typical)
USB Interface:
USB 2.0 Full Speed (12 Mbit/s) via USB Type-C connector
Battery Type:
Li-Ion 3.7 V, 5,200 mAh
IP Rating:
IP65
Battery Charging Time:
4 hours 15 min. with 2 A AC/DC power supply
USB Cable Length:
1.5 m
download data sheet:
https://rfid4ustore.com/content/data_sheet/CAEN%20R1307I%20fIDo%20DataSheet.pdf
