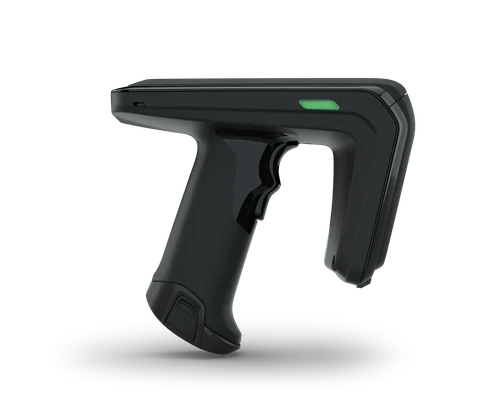

Zebra RFD40 Standard RFID Sled

Zebra RFD40 Standard RFID Sled

Gain the edge you need and become more efficient than ever with the RFD40 UHF RFID Standard Sled. Decrease time spent on cycle-counting with an industry-best 1300+ tag reads per second, optimised read range and increased battery capacity, empowering workers in the retail, hospitality, and healthcare industries. Adapt to new and emerging technologies with this state-of-the-art sled that will connect to current and future Zebra mobile computers through eConnex™ direct connection or USB.

The Zebra RFD40 UHF RFID Sled Available in three different Version RFD40 Standard, RFD40 Premium, and RFD40 Premium Plus

The Key Product Features of RFD40

Features & Benefits:

Unparalleled Efficiency - The RFD40 Sled outperforms the competition with 1,300+ tag reads per second (up to 30% faster than the next leading competitor), a 20+ foot read range and ultra-accurate item-finder mode. With a 7000mAh battery

Adaptive Solutions - The RFD40 Sled is fully enabled to support Zebra’s current mobile computers as well as new mobile computers as they come out.

Durability You Can Depend On - Zebra devices have the ability to withstand everyday environments. The RFD40 Sled has a 5-foot drop to concrete specification and a 500 cycle 0.5 meter/1.6 foot tumble specification to replicate real world knocks and bumps

Next Generation Connectivity - The sled has the ability to instantly connect to supported Zebra eConnex™-enabled devices including the TC21/26, EC50/55 and future models.

Flexible and Future-Proof Charging - The charging solutions for the RFD40 Sled provide users a flexible way to power up the sled and mobile computer in a variety of ways. Featuring 2 sets of charging pins, each cradle cup can charge the RFD40 Sled by itself, the mobile computer by itself, or the combination of RFD40 Sled and mobile computer when attached together

Accessory Options: - Cradles that support RFD40 Premium and Premium Plus Sleds come in both one-slot and multi-slot options, as well as charge-only and communication variants. For communication support, the one-slot communication cradles have a Micro-USB port for connection to a host PC, while the multi-slot cradles possess an Ethernet port for connection to a corporate network.

Device Mounts:

• ADP-RFD40-BT-1R- RFD40 Sled Bluetooth Adaptor for OtterBox uniVERSE Cases
• ADP-RFD40-TC2X-2E- RFD40 Sled eConnex Adaptor for TC22/27

• ADP-RFD40-EC5X-1E- RFD40 Sled eConnex Adaptor for EC50/55
• ADP-RFD40-TC5X-2E- RFD40 Sled eConnex Adaptor for TC53/58
• ADP-RFD40-TC5X-0E- Zebra RFD40 eConnex™ Adapter for TC52ax with SE55 scan engine

• ADP-RFD40-TC5X-1E- Zebra RFD40 eConnex™ Adapter for TC52ax with SE4720 scan engine


Charging Cradles:

Please note that the charging cradles require one power supply, one AC cord, and one DC cord to operate. To purchase together, please select the charging cradle kit option:

Single Slot Cradles: -

• CRD1S0T-RFD49-UNIV-CHG-1R- RFD40, 1 Slots, Charge Only Cradle with support for Universal/3rd Party
• CRD1S0T-RFD40-TC2X-CHG-1R - RFD40, 1 Slot, Charge Only Cradle with support for TC21/26
• CR40-1S0T-TC5-G-01 - RFD40, 1 Slot, Charge Only Cradle with support for TC51/52/52x/52ax/56/57/57x
• CRD1S0T-RFD40-EC5X-CHG-1R - RFD40, 1 Slot, Charge Only Cradle with support for EC50/55
• CR40-1S0T-TC5-M-01 - RFD40, 1 Slot, Communication Cradle with support for TC51/52/52x/52ax/56/57/57x
• CRD1S0T-RFD40-EC5X-COM-1R - RFD40, 1 Slot, Communication Cradle with support for EC50/55
• CRD1S0T-RFD49-UNIV-COM-1R- RFD40, 1 Slots, Communication Cradle with support for Universal/3rd Party.

Required Accessories for Single slot Charging Cradles:

• PWR-BGA12V50W0WW - Power Supply
• CBL-DC-388A1-01 - DC Line Cord
• 23844-00-00R - AC Line Cord (US Specific)

Multi Slot Cradles: -

• CRD3S4T-RFD40-TC2X-CHG-1R - RFD40, 3 Slots, Charge Only Cradle with support for TC21/26
• CRD3S4T-RFD49-UNIV-CHG-1R- RFD40, 3 Slots, Charge Only Cradle with support for Universal/3rd Party.
• CRD3S4T-RFD40-EC5X-CHG-1R - RFD40, 3 Slots, Charge Only Cradle with support for EC50/55
• CR40-3S4T-TC5-G-01 - RFD40, 3 Slots, Charge Only Cradle with support for TC51/52/52x/52ax/56/57/57x
• CRD3S4T-RFD40-TC2X-COM-1R - RFD40, 3 Slots, Communication Cradle with support for TC21/26
• CRD3S4T-RFD40-EC5X-COM-1R - RFD40, 3 Slots, Communication Cradle with support for EC50/55
• CR40-3S4T-TC5-M-01 - RFD40, 3 Slots, Communication Cradle with support for TC51/52/52x/52ax/56/57/57x
• CRD3S4T-RFD49-UNIV-COM-1R- RFD40, 3 Slots, Charge+Communication Cradle with support for Universal/3rd Party.

Required Accessories for Multi slot Charging Cradles:

• PWR-BGA12V108W0WW - Power Supply
• CBL-DC-382A1-01 - DC Line Cord
• 23844-00-00R - AC Line Cord (US Specific)

What is included?

• Zebra RFD40 Standard UHF RFID Sled Unit
• Battery
• Lanyard
• Quick Start Guide
• One Year Standard Manufacturer Warranty

What is the warranty on the Zebra RFD40 Standard sled?

The Zebra RFD40 Standard sled comes with a one-year warranty from the date of purchase. Additional warranty options also available.

What mobile devices are compatible with the Zebra RFD40 Standard sled?

The Zebra RFD40 UHF RFID Standard Sled is currently compatible with all Zebra eConnex™-equipped (8-pin) mobile computers.

The Zebra RFD40 Standard sled is designed to work with Zebra mobile computers and select smartphones, including TC21/26.

What is the read range of the Zebra RFD40 Standard sled?

The read range of the Zebra RFD40 Standard sled depends on several factors, including the type of RFID tag being used, the power settings of the device, and the environment in which it is being used. In general, the device can read tags at a range of up to ~19.7+ ft./ ~6+ m.

What is TagMatiks Wedge?
TagMatiks Wedge is a simple to use RFID software application for mobile devices. TagMatiks Wedge is designed to collect RFID data using an RFID handheld or sled and then feed that data directly to business systems and applications using a wide variety of formats and options.

Is there a user manual available?
Yes, the user manual and support documentation are available on the TagMatiksWedge.com.
