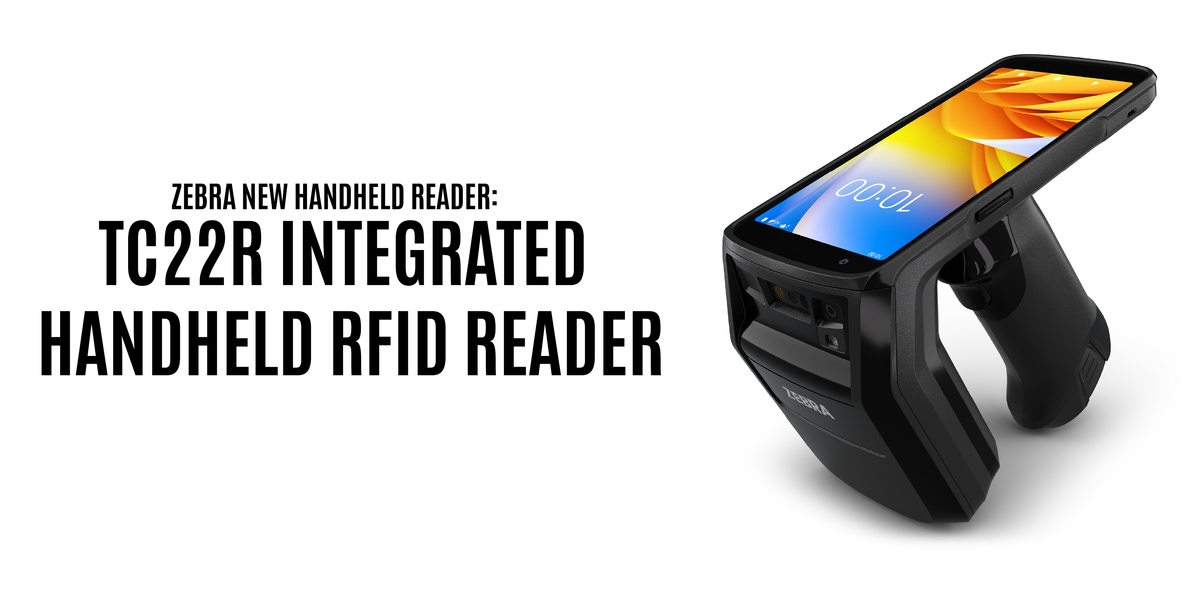

Zebra TC22R: Integrated Handheld RFID Reader for Enterprise

In today’s fast-paced and increasingly competitive business environment, efficient asset tracking and inventory management are no longer optional—they’re essential. Companies across industries are seeking solutions that are intuitive, powerful, and easy to deploy. Enter the Zebra TC22R Integrated Handheld RFID Reader, a cutting-edge device designed to streamline operations, reduce fatigue, and deliver real-time visibility with unmatched performance.

Accelerate Your Inventory Management with TC22R

The TC22R is engineered to empower frontline workers with a lightweight, ergonomic device that doesn’t compromise on power or functionality. Whether you're conducting cycle counts, managing stock across retail floors, or tracking assets in warehouses, the TC22R offers a seamless experience that enhances productivity and reduces operational strain.

Ergonomic Design for All-Day Comfort

• Weighing just 569 grams (20.07 oz.), the TC22R is significantly lighter than traditional handheld readers.
• Its all-touch design and multi-mode capacitive touch panel support bare or gloved input, making it ideal for diverse working conditions.
• The 6.0-inch Full HD+ display with 450 nits brightness ensures clear visibility in various lighting environments.

This ergonomic build allows associates to perform inventory tasks for extended periods without experiencing the fatigue commonly associated with heavier devices.

Simplified Deployment with Android Integration

Deployment and management of RFID devices can be a logistical challenge—but not with the TC22R. Powered by a fully integrated Android operating system, the reader is compatible with mainstream Mobile Device Management (MDM) platforms, simplifying setup and reducing IT overhead.

• User-programmable buttons and an on-screen keypad offer customizable input options.
• Tri-function trigger enhances user control for scanning, push-to-talk (PTT), or other functions.
• USB 3.1 Type-C interface supports both host and client modes for fast data transfer and charging.

Combined with Wi-Fi 6 and Bluetooth® capabilities, the TC22R ensures seamless connectivity across your network, enabling faster training and quicker deployment.

Industry-Leading RFID Performance

The TC22R sets a new benchmark in RFID performance with its Zebra Proprietary Radio Technology, delivering read rates of up to 1,300 tags per second—a game-changer for businesses that rely on high-volume data capture.

RFID Highlights:

• Standards Supported: EPC Class 1 Gen 2; EPC Gen 2 V2
• Read Range: Up to 40 ft. (12.2 m) with integrated antenna
• Frequency Support:
• US: 902–928 MHz
• EU: 865–868 MHz
• Japan: 916–921 MHz (with LBT)
• RF Output: Up to 36 dBm (EIRP/ERP depending on region)
• Antenna Gain: 4 dBi

This high-speed, long-range RFID capability enables real-time insights into asset movement—from the first mile to the last, or from the front of the store to the back.

NFC and Data Capture Capabilities

Beyond RFID, the Zebra TC22R is equipped with advanced data capture features that support a wide range of applications:

• NFC Support: ISO 14443 Type A/B, Mifare, FeliCa, ISO 15693, NFC Forum tags 2–5, Host Card Emulation, and contactless payment.
• Barcode Scanning: Integrated SE4710 1D/2D scan engine for fast and accurate barcode reads.
• Camera System:
• Rear Camera: 16 MP for high-resolution imaging
• Front Camera: 5 MP for video calls or facial recognition

These features make the TC22R ideal for mobile point-of-sale (POS), customer engagement, and field service applications.

Connectivity and Environmental Resilience

The TC22R is built to thrive in demanding environments:

Network & Interface:

• WLAN and WPAN support for flexible connectivity
• USB 3.1 SuperSpeed port for rapid data exchange

Environmental Specs:

• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Humidity: 5–95% non-condensing
• IP65 Sealing: Dust and water resistance
• Drop Spec: Survives multiple 5 ft. (1.5 m) drops to concrete
• Tumble Spec: 500 cycles (1,000 drops from 0.5 m) at room temperature.

These rugged specifications ensure the TC22R performs reliably in both indoor and outdoor settings, from retail floors to industrial warehouses.

Power That Lasts

The TC22R features a user-removable, quick-release 7,000 mAh Li-Ion battery with PowerPrecision+ technology. This enables real-time battery metrics, helping teams monitor power levels and plan recharges efficiently—critical for uninterrupted operations.

Trusted RFID Leadership from Zebra

Zebra Technologies is a recognized leader in RFID innovation, with more fixed, handheld, and portal systems installed globally than any other provider. With over 300 RFID patents and a legacy of industry-firsts, Zebra delivers solutions that are tested, proven, and trusted by some of the world’s largest enterprises.

Choosing the TC22R means investing in a future-ready RFID solution backed by decades of expertise and innovation.

Conclusion: A Smarter Way to Track and Manage Assets

The Zebra TC22R Integrated Handheld RFID Reader is more than just a device—it’s a strategic asset for businesses looking to optimize inventory management, reduce operational costs, and gain real-time visibility into their supply chain. With its ergonomic design, powerful performance, and simplified deployment, the TC22R is poised to become a cornerstone of modern asset tracking.

Whether you're in retail, logistics, manufacturing, or healthcare, the TC22R offers the reliability, speed, and flexibility needed to stay ahead in a competitive marketplace.
